Stoney Creek is a sloped town, and that single fact decides how every patio here has to be built. The streets climbing from Highway 8 toward the escarpment around Lake Avenue, King Street East and the Mountain Brow drop 1 m to 4 m between back door and rear fence on most lots, so a single flat patio is rarely the right answer. Lower Stoney Creek flattens out but sits on the same heavy clay that runs across the Hamilton east end. Winona and Fruitland have larger rural-edge lots where field drainage stacks against any new hardscape. The escarpment edge from Albion Falls through Devil’s Punchbowl runs 80 to 100 freeze-thaw cycles a season, and any DIY patio dropped on Stoney Creek clay without a real base will dish or pump joint sand out by year three. Doing it right means terracing where the slope demands it, engineered base everywhere, and retaining wall structure integrated with the patio from day one.
Quick verdict for Stoney Creek homeowners
For a properly built, code-friendly interlocking patio in Stoney Creek in 2026, expect to budget $40 to $90 per square foot turnkey on most residential projects, with premium paver lines and complex terraced sites pushing $100 to $160. A typical 300 to 500 sq ft Stoney Creek backyard patio runs 5 to 12 working days on site, weather permitting. Anything on an Old Stoney Creek sloped lot climbing toward the escarpment needs to be priced as a terraced system with a segmental retaining wall and geogrid behind it, not as a single flat field. Lower Stoney Creek and Fruitland lots that level out still need 6 to 8 inches of compacted 3/4 clear over geotextile to deal with the clay. Always get a written scope showing base depth, geotextile, edge restraint, wall drainage and polymeric joint product before signing.
2026 Stoney Creek interlocking patio cost
Prices below are turnkey installed costs for Stoney Creek in 2026, including demolition of existing surfaces, excavation, geotextile, 6 to 8 inches of compacted 3/4 clear stone, bedding sand, paver supply, polymeric joint sand, edge restraint and site cleanup. They do not include segmental retaining walls priced separately, lighting circuits, or pool-deck code work.
| Tier | Paver brand and size | Cost per sq ft | Lifespan | Best fit |
|---|---|---|---|---|
| Basic | Permacon Melville or Techo-Bloc Blu 60mm, standard rectangular | $25 to $45 | 20 to 30 years | Side yards, utility patios, basic Fruitland rear yards |
| Mid-grade | Unilock Beacon Hill, Techo-Bloc Industria 60mm | $40 to $70 | 30 to 50 years | Most Lower Stoney Creek family backyards, Winona walkway and patio combos |
| Premium | Unilock Series 3000, Techo-Bloc Blu Slate, large-format 80mm | $65 to $110 | 50 to 75 years | Old Stoney Creek terraced patios, escarpment-view builds, Mountain Brow surrounds |
| Luxury | Unilock Umbriano, Techo-Bloc Aberdeen, Permacon Lamina XL | $100 to $160 | 75+ years | Estate escarpment-edge lots, integrated outdoor kitchens, multi-tier entertaining systems |
To sanity check a quote on your own square footage, run the numbers through our patio cost calculator and read the full paver patio cost guide for Ontario for the line-item breakdown. If your project includes a retaining wall, the retaining wall cost guide walks through the wall side of the budget.
Common Stoney Creek interlocking patio projects we build

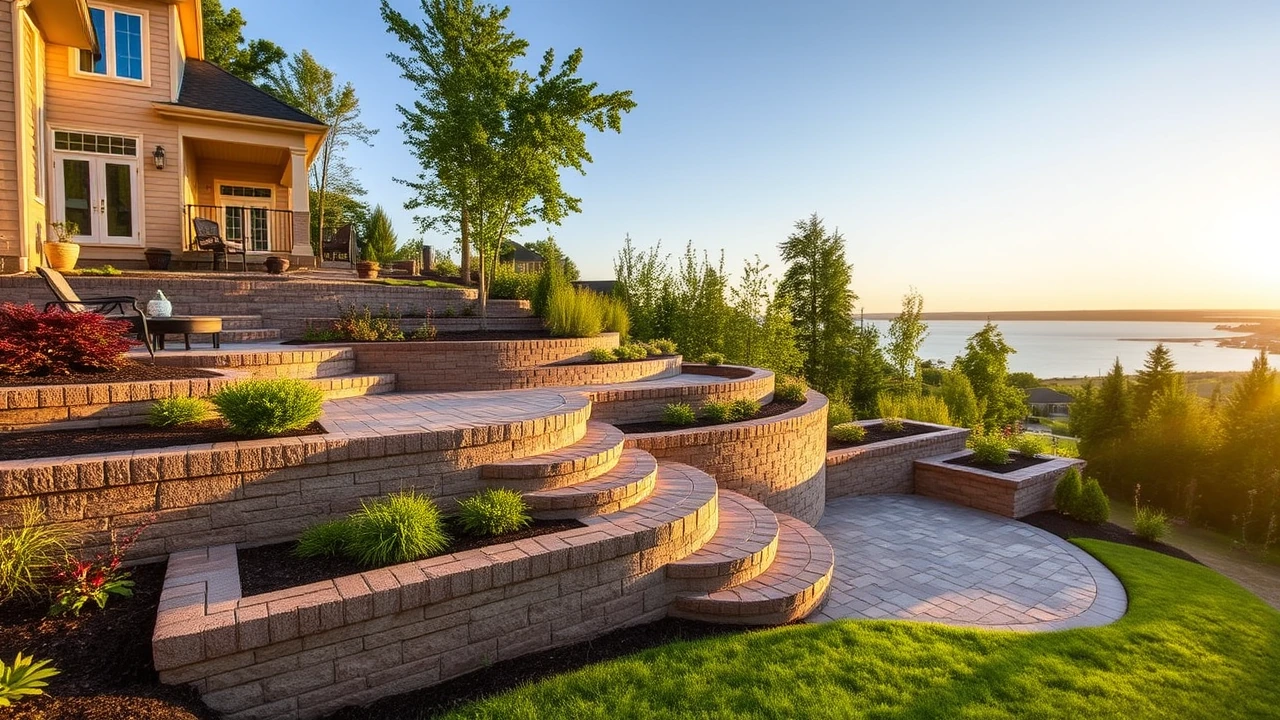

Terraced multi-tier patios in Old Stoney Creek
Old Stoney Creek, the streets climbing from Highway 8 up toward the Mountain Brow through Lake Avenue, King Street East and the side streets feeding Centennial Parkway, has lots that fall 2 m to 4 m from the back door to the rear fence. We design these yards as terraced systems: an upper entertaining patio at door level, a 600 to 1,200 mm segmental block retaining wall stepping down, and a lower fire-pit patio at the second elevation. Each tier gets its own 6 to 8 inch engineered base of compacted 3/4 clear over non-woven geotextile, perimeter drainage and spiked aluminum edge restraint. Geogrid runs back into the slope behind every wall course above 600 mm, and weeping tile at the base of each wall is piped to a side-yard discharge so spring runoff cannot stack behind the lower tier.
Retaining wall and patio combos through Lower Stoney Creek
Lower Stoney Creek, from Barton Street down toward Lake Ontario through the older streets around Battlefield and Green Mountain, has lots that level out but still sit on heavy clay with grade drops of 600 mm to 1.2 m across the rear yard. The right build is usually a single rear patio of 300 to 600 sq ft with a 600 to 900 mm segmental retaining wall holding back the grade. We sequence the wall first with geogrid into the slope and weeping tile behind it, then build the patio against the wall with the same engineered base. The same crew handles the retaining wall and hardscaping piece in one mobilisation.
Rear-yard family patios on Winona and Fruitland clay
Winona and Fruitland, the larger lots east of Fifty Road through to the Niagara border, have rural-edge sites where neighbouring field drainage stacks against any new hardscape and the clay pumps hard through freeze-thaw. We build these as 400 to 700 sq ft rear-yard family patios in mid-grade Techo-Bloc or Unilock product, with an 8 inch engineered base wrapped in non-woven geotextile. The patio is pitched 1 to 2 percent away from the foundation, edge-restrained with spiked aluminum, and finished with a contractor-grade polymeric joint sand. On larger Winona lots we often pair the patio with a fire-pit landing connected by a short paver path.
Escarpment-view patios near Albion Falls and the Mountain Brow
The streets along the Mountain Brow from Albion Falls through Devil’s Punchbowl have escarpment-view lots where the patio is the whole point of the backyard. These are usually premium 80mm Unilock or Techo-Bloc large-format paver builds of 400 to 800 sq ft, positioned to frame the view without crowding the brow setback. Conservation Hamilton review can apply inside the regulated escarpment area. The base has to be engineered for the freeze-thaw load the brow takes, the edge restraint has to be steel on any patio that ends at a drop, and we never extend a patio into the regulated 7.5 m brow setback without a Conservation Hamilton sign-off. For surface choice on a view-lot build, the interlock vs concrete vs natural stone comparison covers the trade-offs.
Why DIY patios fail on Stoney Creek slopes (and what we do differently)
The failure modes on Stoney Creek DIY patios are not just the standard base and edge problems you get across Hamilton. The defining failure on a sloped Stoney Creek lot is the missing retaining wall. A homeowner builds a flat patio against the slope, holds the cut back with a row of treated 4x4s or a single course of dry-laid block, and within two seasons the slope behind the wall fails, dumping soil and water onto the patio and pushing the rear pavers outward. The fix is not a bigger patio. It is a properly engineered segmental wall with geogrid into the slope, drainage stone and weeping tile behind it, and a patio built against the wall with its own base.
The other failures repeat what we see across Hamilton clay. First, base failure: 3 to 4 inches of bagged paver base on native clay without geotextile, which pumps fines and dishes by year three. Second, frost heave: any patio with a base shallower than 6 inches of compacted 3/4 clear sits inside the active frost zone and lifts unevenly each winter. Third, missing or undersized edge restraint, especially on the downhill edge of a sloped patio, where the load wants to walk pavers outward across the field. Fourth, polymeric joint mistakes from over-watered activation. We do it differently on every Stoney Creek job: walls engineered with geogrid and weeping tile where the slope demands them, 6 to 8 inches of compacted 3/4 clear over non-woven geotextile, bedding sand screeded to 1 inch, factory-grade pavers cut on a wet saw, spiked aluminum or steel edge restraint, and a contractor-grade polymeric joint product activated in dry conditions.
The Stoney Creek patio install timeline
- Free on-site visit. We measure the space, probe the soil, check the slope across the yard, photograph existing grades and downspout locations, and talk through how you will use the patio. You leave with a realistic Stoney Creek 2026 cost band including any wall structure the slope demands.
- Design and written quote. We send a fixed scope with paver spec, base depth, wall heights and geogrid layout, drainage detail, edge restraint type, polymeric product, square footage and timeline. No vague single-line quotes.
- Permit and conservation check. Most residential patios in Stoney Creek do not need a building permit, but retaining walls above 1 m and any work near the escarpment brow or a regulated watercourse trigger reviews. We confirm the permit and Conservation Hamilton path before mobilising.
- Demo and excavation. We strip sod, break out failing concrete or pavers, cut the wall footings into the slope, excavate 10 to 14 inches below finished patio grade, and haul away the spoils.
- Walls, base and compaction. Walls go first with geogrid into the slope and weeping tile behind them. Then non-woven geotextile on the clay, 6 to 8 inches of 3/4 clear stone placed in 2-inch lifts and compacted with a reversible plate compactor. Final base is dead-flat and pitched 1 to 2 percent away from the house.
- Bedding, pavers and polymeric. We screed 1 inch of bedding sand, lay the field in the agreed pattern, cut the perimeter on a wet saw, set spiked aluminum or steel edge restraint, sweep and activate polymeric joint sand, and walk the site with you before final cleanup.
Permits and bylaws in Stoney Creek
Stoney Creek is part of the City of Hamilton, so the Hamilton building permit and zoning rules apply. The City does not require a building permit for most at-grade residential interlocking patios that sit on the ground, are not attached to a deck or dwelling, and do not affect drainage onto neighbouring properties. The triggers that do require a permit or review: a patio attached to a deck above 600 mm, a patio inside a pool enclosure, any work that re-routes surface water across a property line, and any retaining wall above 1 m in height. The City of Hamilton lot-grading bylaw still applies even when no permit is needed: your patio cannot push runoff onto a neighbour or back toward a foundation.
For Stoney Creek patios near the Niagara Escarpment, the Mountain Brow, Battlefield Park or the Devil’s Punchbowl regulated area, Conservation Hamilton review can add 4 to 8 weeks to the timeline. The regulated escarpment setback is typically 7.5 m from the brow, and any hardscape inside that band needs approval. We handle the permit path, conservation review, drainage detail and inspection coordination as part of the build, so you are not chasing City and Conservation forms while the crew waits.
Frequently asked questions
What kind of warranty do you offer on a Stoney Creek patio?
Our standard warranty is 1 to 2 years on workmanship across the assembly (base, bedding, paver layout, edge restraint, polymeric, and any integrated retaining wall), on top of the manufacturer warranty on pavers and wall block (Unilock, Techo-Bloc and Permacon carry 25-year to lifetime transferable warranties). Full terms in the signed contract.
Do I need a retaining wall with my Stoney Creek patio?
On most Old Stoney Creek lots climbing toward the escarpment, yes. Any grade change above 600 mm at the patio edge wants a properly engineered segmental wall with geogrid and weeping tile. On flatter Lower Stoney Creek and Fruitland lots the wall may be optional. We price the wall as a line item so you can see what the slope is costing.
When should I seal my new interlocking patio?
Wait 6 to 12 months before sealing. New pavers need a full freeze-thaw cycle and a summer of weathering to outgas efflorescence from the concrete. Sealing too early traps moisture and can cause cloudy white blooms that are nearly impossible to remove. After that first year, a quality joint-stabilising sealer every 3 to 5 years extends the life of the polymeric and deepens the colour.
Can you build a patio in winter in Stoney Creek?
No. Our Stoney Creek patio install season is roughly May through October, with some flexibility into early November. We do not place pavers on frozen base or set polymeric in cold or wet conditions, because the spring thaw will shift the assembly and the polymeric will never bond. Most clients book in late winter for a May to July build slot.
How do you handle drainage on a sloped Stoney Creek lot?
Four layers of defence on a terraced build. Non-woven geotextile between the clay and the gravel base so clay fines cannot migrate up. Six to 8 inches of compacted 3/4 clear stone under every tier. Weeping tile behind every retaining wall above 600 mm, piped to a side-yard discharge. And a 1 to 2 percent positive pitch on every patio surface, set so water leaves the field rather than ponding behind it or stacking against the next wall down.
What maintenance do polymeric joints need?
Very little when installed correctly. Sweep debris off the patio a few times a season, hose it down occasionally, and watch the joints for any spots that have washed low. Top up with matching polymeric every 5 to 8 years on a typical Stoney Creek patio. Avoid pressure-washing the joints directly, which will erode the polymeric.
Will my patio affect my lot grading?
Not if it is designed properly. We pitch the patio surface away from your foundation at 1 to 2 percent, route any captured water to existing swales or downspout extensions, and confirm post-build grades still send surface water off your lot the way the original City of Hamilton grading certificate intended. On terraced Old Stoney Creek lots, the wall drainage is piped to discharge points that respect the original grade plan.
Can you tie the patio into a new retaining wall or driveway?
Yes, and on most sloped Stoney Creek lots it is the right call. Combining the patio, retaining wall and any driveway replacement into one mobilisation saves two or three days of setup costs and gives a single warranty across the whole assembly. The same crew that builds the patio handles the wall and driveway work.
